Multi Tank Water Level Controller
â‚ą 16,500 / Piece
â‚ą 18,000
8%
Highlights
Single motor can control 6 over head tank water automatic change over value & 1 sump water level, (options extanal) 6 different supply can use , & motor safety can provide like low & hig voltage dry & over current
You have a single sump motor, one control panel, and multiple overhead tanks (5 tanks) with float switches and solenoid valves. Here is how this system works and should be connected 👇
🔧 System Components
Sump Motor (Pump)
Pumps water from sump to overhead tanks.
Float Switch in Sump
Protects pump from dry run.
Stops motor when sump water is low.

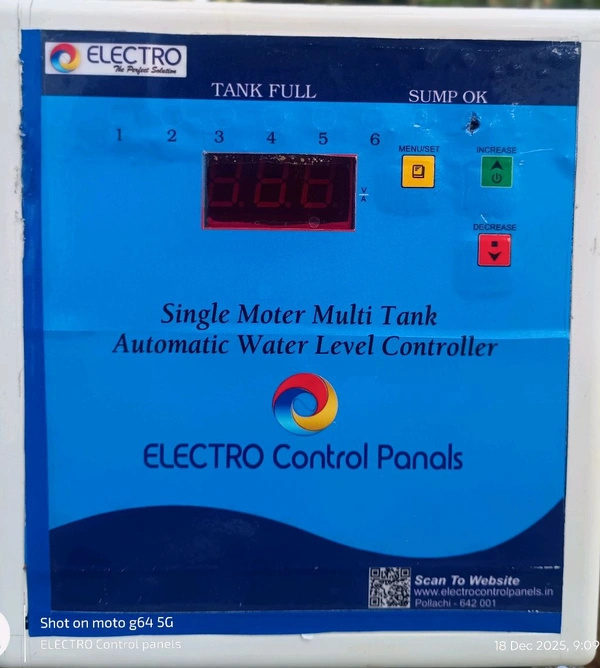

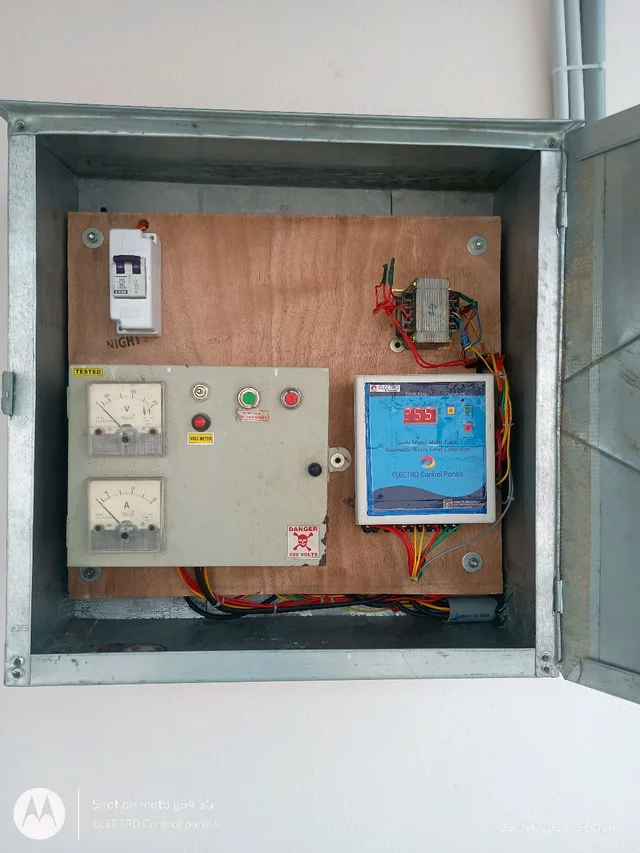

Multi Tank Water Level Controller (Single Panel)
Controls motor ON/OFF.
Selects which tank needs water.
Controls solenoid valves.

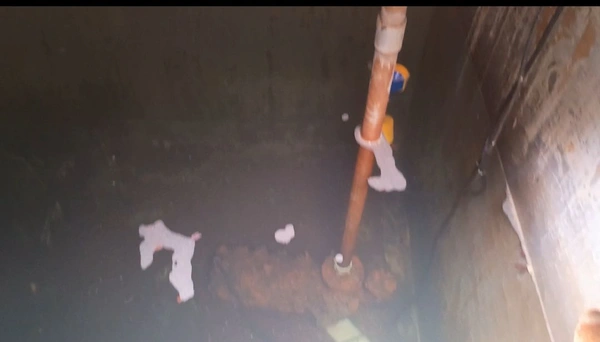

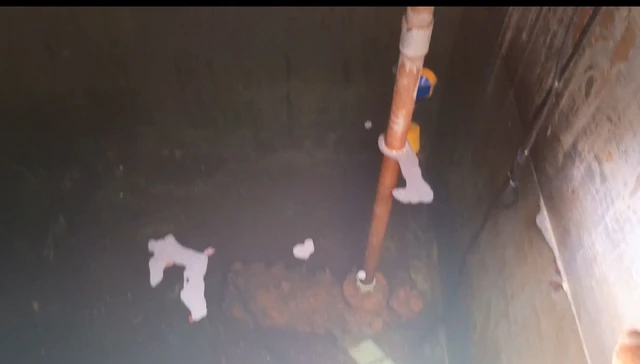

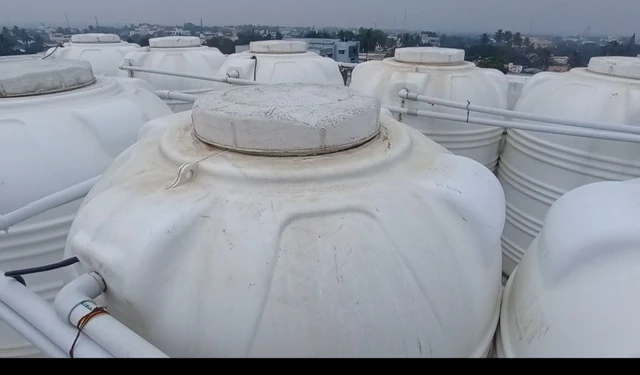

Top Tank Float Switches (5 Tanks)
One float in each overhead tank.
Detects FULL and EMPTY levels.

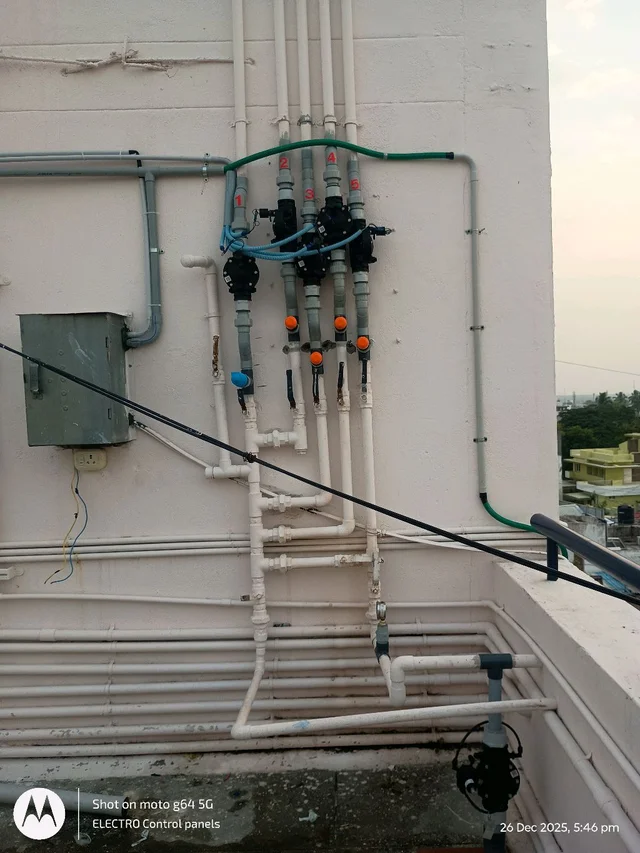

Solenoid Valves (5 Nos)
One valve per tank line.
Opens only the tank that needs water.
⚙️ Working Principle
âś… When Any Tank Is Low
That tank’s float sends signal to controller.
Controller:
Turns ON sump motor.
Opens corresponding solenoid valve.
Water flows only to that tank.
âś… When Tank Becomes Full
Float switch sends FULL signal.
Controller:
Closes that solenoid valve.
Checks next tank demand.
âś… When All Tanks Are Full
Controller switches OFF motor automatically.
âś… If Sump Water Is Low
Sump float stops motor.
Prevents dry running and motor damage.

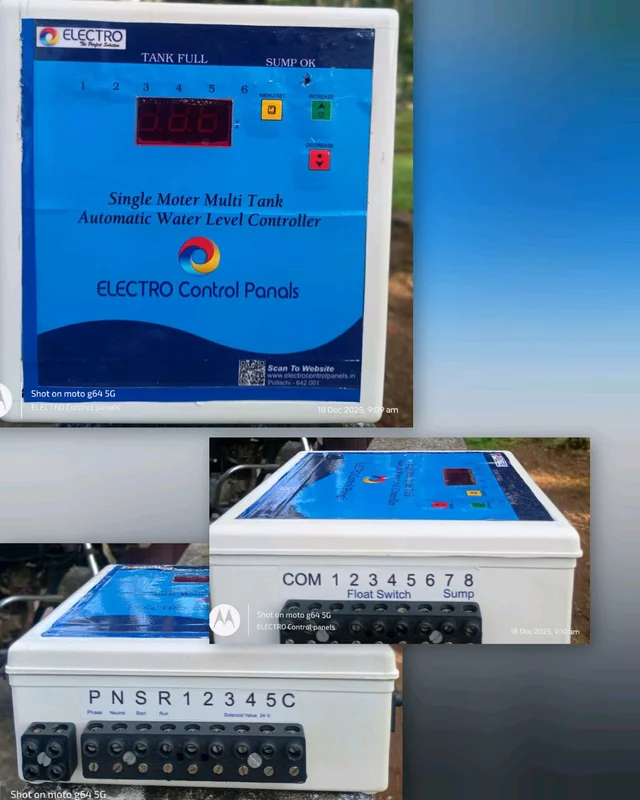

🔌 Wiring Summary
Sump Float → Panel
Connect to SUMP INPUT terminals
Tank Floats → Panel
Each tank float connects to:
TANK 1
TANK 2
TANK 3
TANK 4
TANK 5 inputs
Solenoid Valves → Panel Output
Each valve wired to:
VALVE 1
VALVE 2
VALVE 3
VALVE 4
VALVE 5
Pump → Panel Contactor Output
Motor supply goes through panel contactor.
âś… Advantages of This Setup
âś” Automatic filling
âś” No overflow
âś” No dry run
âś” One motor for all apartments
âś” Power saving
âś” Fully automatic operation
If you want, I can also provide:
Proper wiring diagram
Float switch wiring method (3-wire / 2-wire)
Solenoid valve connection diagram
Priority tank setting method
Panel programming steps
Just tell me đź‘Ť
